| Product Name | Outdoor CAT6 SFTP LAN CABLE | Application | Outdoor Use,UV Resistance,waterproof |
|---|---|---|---|
| Conductor Type | Solid Pure Bare Copper | Cable Jacket | PVC And LDPE |
| Shielding Type | Double Shielded | Shield | Aluminum Foil |
| Braiding | 96*0.12MM Aluminum | Package | 305m/1000ft/box |
| Highlight | Double Sheath Outdoor Ethernet Cable Cat6,305M Outdoor Ethernet Cable Cat6,305M Cat6 SFTP Cable | ||
Double Sheath Outdoor Ethernet Cable Cat6 SFTP Cable 305 Meter
Outdoor Double Sheath Solid Copper Network Cable Cat6 SFTP Ethernet Cables 305meter
Our double shielded Cat6 outdoor waterproof direct burial ethernet network cable allows you to extend your internet connection even in the harshest environments. Its weatherproof double outer jacket will enable you to bury your lines underground while protecting your wires from various elements. This supports high bandwidth up to 550 MHz and speeds up to 1000mbps giving you flawless uninterrupted connection for your home or workplace.
Features
Product Type: Cat6 SFTP
Conductor Material: 100% Bare Copper/CCA
Insulation: HDPE

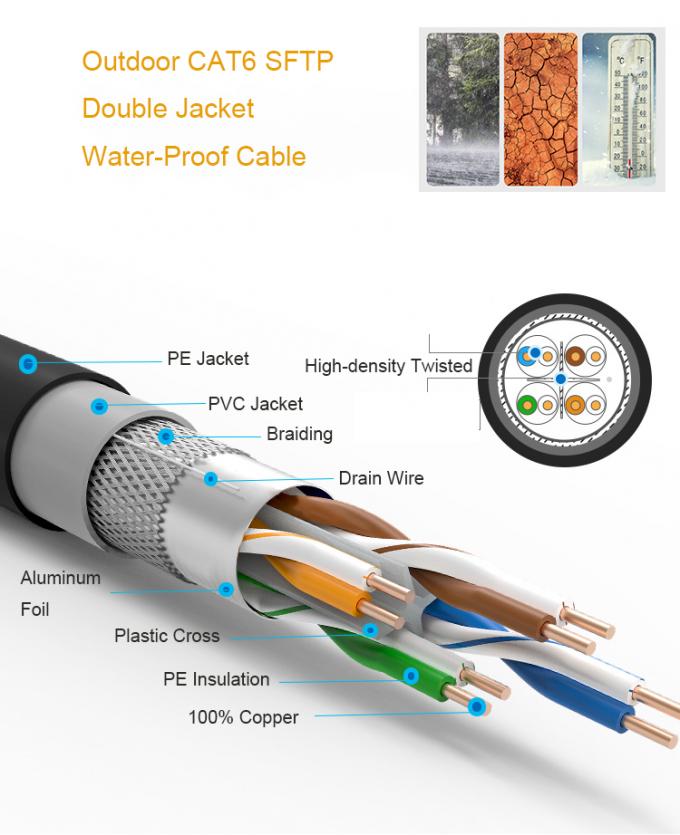

Double Jacket: inner PVC, outer PE
Jacket Color: Black/White/Gray/Blue. (Or as customer’s request.)
Certificates: CE UL RoHS FCC ROHS
Application
1. Ethernet;10 Base-TX;ATM; Trunk Cabling;
2. Widely apply to network wiring structure and transmission media,such as audio,video,digital communication, message .
3. It commonly uses for connecting computers with other Ethernet devices.such as, DSL/Cable Modem hubs, switches, routers, Etc
Parameter
| Product Name | Outdoor Water-Proof SOUBLE SHIELDED TWISTED PAIR 8 CORE CAT6 SFTP CABLE | |
| Inner Conductor | Material | 100% Pure Copper |

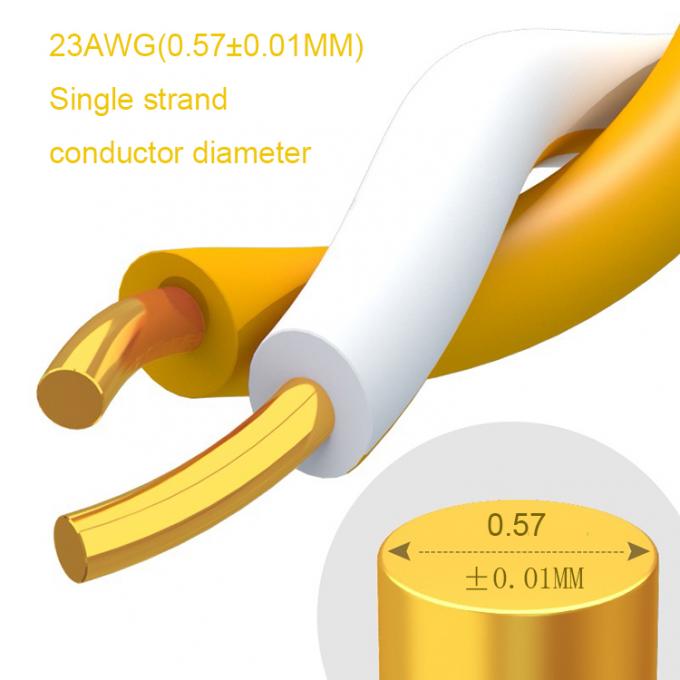

| Diameter | 0.57mm ± 0.01mm ( 23AWG ) | |
| Insulation ( Dielectric ) | MaterialThicknessDiameter | Color-coded PE (Polyethylene) |
| ≥ 0.21mm | ||
| 1.03mm ± 0.01mm | ||
| Cross Separator | Material | Plastic |
| Shielded Layer | Material | Aluminum Foil |
| Braided | MaterialTypeDiameter | CCA, Aluminum, Copper, TC and so on |
| 32, 48, 64, 80, 96, 112, 128, 144 | ||
| 0.08mm, 0.10mm, 0.12mm | ||
| Twisted Pair | N/A | Pair 1: Blue, White/ Blue |
| Pair 2: Orange, White/ Orange | ||
| Pair 3: Green, White/ Green | ||
| Pair 4: Brown, White/ Brown | ||
| Outer Jacket | Material | PE |
| Inner Jacket | Material | New PVC (Rip code, Optional) |
| Thickness | ≥ 0.65mm | |
| Nominal O.D | 6.80mm ± 0.10mm | |
| Reference Standard | Category 6 UL444, ANSI/ TIA/ EIA 568B & ISO/ IEC11801 Stanard | |
| Rated Temperature | -20℃ to +70℃ | |
| Supports Transmission | Digital and analogue voice, data and video signal | |



If you have any questions, please get in touch with us at
sales@computerplus.com.mv
