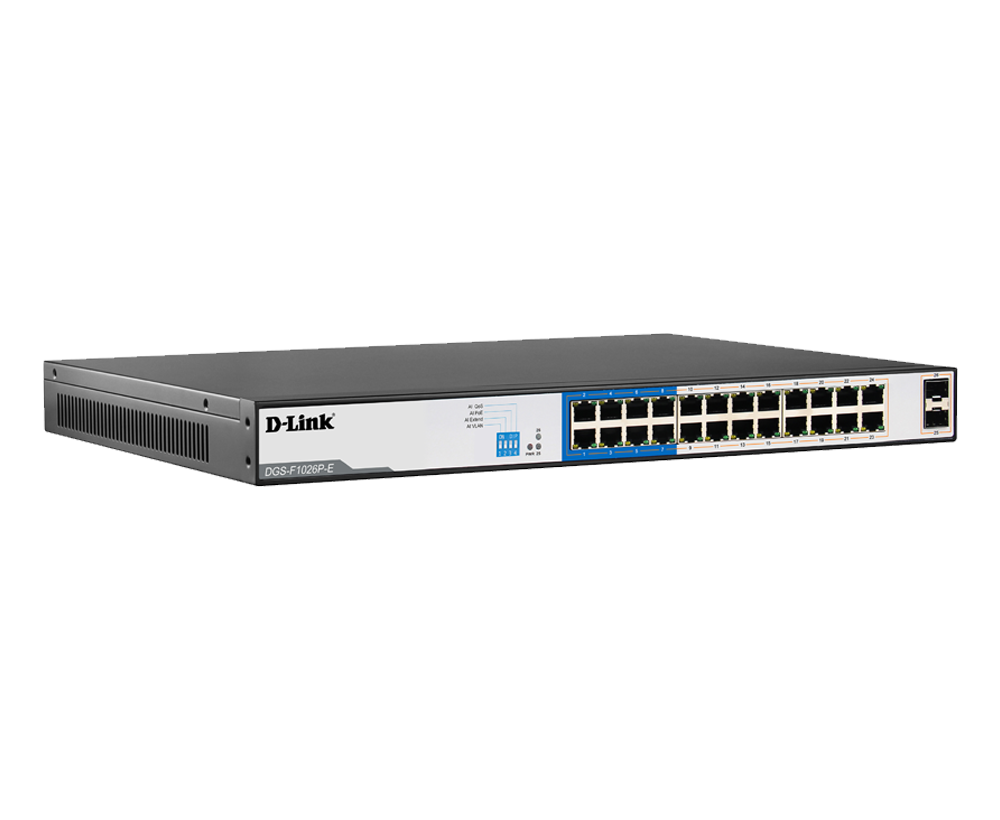

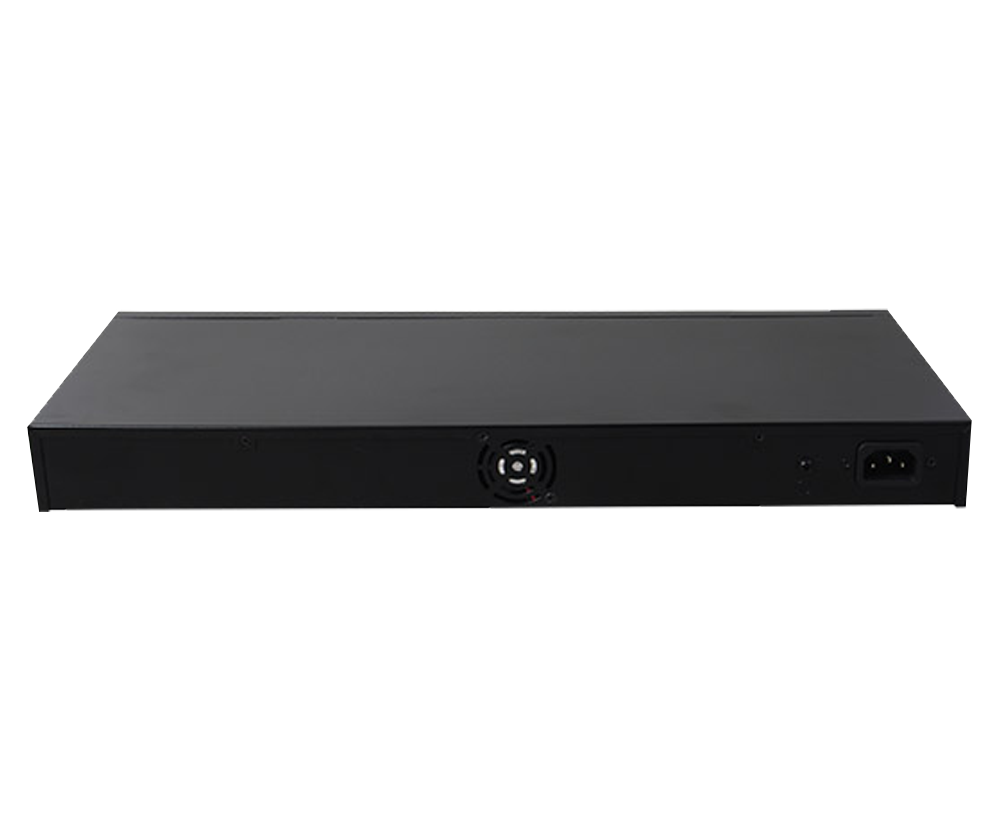

D-Link DGS-F1026P-E 24-Port Gigabit PoE+ Unmanaged Switch

Product Overview

The D-Link DGS-F1026P-E 24-Port Gigabit PoE+ Unmanaged Switch is a network connectivity solution designed for business networks, CCTV surveillance systems, offices, and professional networking environments. It features 24 Gigabit Ethernet ports with Power over Ethernet (PoE+) support and two additional SFP uplink ports, providing flexible connectivity for multiple network devices.
With a total PoE power budget of 250W, the DGS-F1026P-E can supply both data connectivity and electrical power to compatible devices through a single Ethernet cable. This simplifies installations and reduces the need for separate power adapters near connected devices. It is suitable for connecting IP cameras, wireless access points, IP phones, computers, and other compatible network equipment.
The switch supports plug-and-play installation, allowing users to connect network devices without complicated configuration. Its additional operating modes, including Extend, VLAN, QoS, and PoE reset functionality, provide practical options for surveillance and business networking applications.

Key Features

• Brand: D-Link
  Model: DGS-F1026P-E
  Switch Type: Unmanaged Gigabit PoE+ Switch
  Ethernet Ports: 24 × 10/100/1000 Mbps Gigabit Ethernet
  Uplink Ports: 2 × SFP
  PoE Standards: IEEE 802.3af/at
  Total PoE Power Budget: 250W
  Maximum PoE Output: Up to 30W per port
  Switching Capacity: 52 Gbps
  Extended Transmission: Up to 250m on ports 1–8 when Extend mode is enabled
  Operating Modes: Extend, VLAN, QoS, and PoE reset
  Surge Protection: 6kV
  Installation: Plug and play
  Dimensions: 440 × 180 × 44 mm
  Net Weight: 3.00 kg

High-Speed Gigabit Networking

The 24 Gigabit Ethernet ports support data rates of up to 1000 Mbps per port, helping provide fast wired connectivity for computers, network storage devices, printers, surveillance equipment, and other Ethernet-enabled devices.
With a switching capacity of 52 Gbps, the switch is designed to handle traffic across connected network devices efficiently. It is suitable for expanding wired network infrastructure in small and medium-sized businesses, offices, and surveillance installations.

Power over Ethernet Plus (PoE+)

The DGS-F1026P-E supports IEEE 802.3af/at PoE standards, allowing compatible devices to receive network data and electrical power through a single Ethernet cable.
Its 250W total PoE power budget supports installations with multiple powered devices, subject to the available power budget and individual device requirements. This can simplify cabling and provide greater flexibility when installing devices in locations where power outlets are limited.

Long-Range PoE Connectivity

The switch features an Extend mode that supports data and PoE transmission over distances of up to 250 metres on ports 1–8 under supported conditions. This feature is particularly useful for CCTV installations and other deployments where network devices are located far from the main switch.
When using Extend mode, the supported ports operate at a reduced data rate of 10 Mbps. Actual transmission distance and performance depend on the cabling, installation conditions, and connected equipment.

Flexible SFP Uplink Connectivity

Two SFP ports provide additional uplink options for compatible fibre-optic networking equipment. These ports can help connect the switch to other network infrastructure, supporting flexible network expansion over suitable uplink connections.

Network Management Features

Although the DGS-F1026P-E is an unmanaged switch, it includes selectable operating modes for common networking requirements.
VLAN Mode: Helps isolate connected ports for improved network separation.
QoS Mode: Prioritises selected traffic, helping support smoother video transmission.
PoE Reset: Can automatically power-cycle certain unresponsive PoE devices.
Extend Mode: Supports longer-distance PoE and data transmission on ports 1–8.
These features make the switch particularly useful for network and CCTV installations that require straightforward setup with additional practical functions.

Recommended Uses

• IP CCTV and surveillance camera networks
  Office and business Ethernet networks
  Wireless access point connectivity
  VoIP and IP telephone systems
  Connecting computers, printers, and network devices
  Small and medium-sized business networks
  Long-distance PoE installations
  Network infrastructure expansion




Technical Specifications

Specification	Details
Brand	D-Link
Model	DGS-F1026P-E
Product Type	Unmanaged Gigabit PoE+ Switch
Gigabit Ethernet Ports	24
SFP Uplink Ports	2
Ethernet Speed	10/100/1000 Mbps
PoE Standards	IEEE 802.3af/at
Total PoE Budget	250W
Maximum PoE Output	30W per port
Switching Capacity	52 Gbps
Extend Mode Distance	Up to 250m on ports 1–8
Extend Mode Speed	10 Mbps on supported extended ports
Operating Modes	Extend, VLAN, QoS, PoE reset
Surge Protection	6kV
Dimensions	440 × 180 × 44 mm
Weight	3.00 kg
Installation	Plug and play

Conclusion

The D-Link DGS-F1026P-E is a practical networking solution for businesses, offices, and surveillance installations requiring multiple Gigabit Ethernet connections and PoE+ power delivery. Its 24 PoE+ ports, two SFP uplinks, 250W power budget, and long-range Extend mode make it suitable for connecting and powering compatible IP cameras, access points, IP phones, and other network devices.
With plug-and-play installation and useful selectable networking modes, this switch offers a straightforward way to expand wired network connectivity and simplify PoE device deployment.
