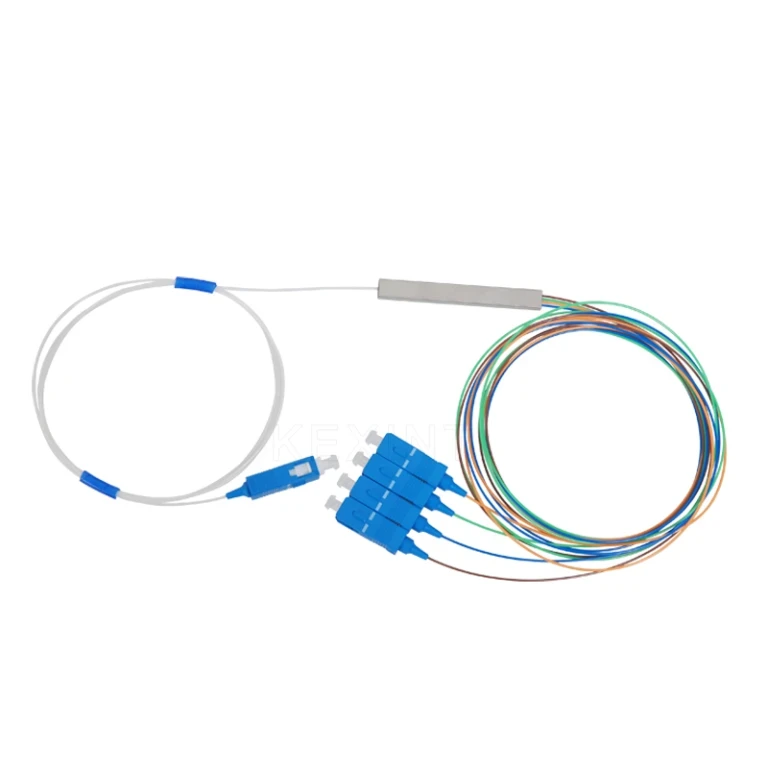

FIBER OPTIC SPLITTER SC/UPC-APC PLC 1*4 (AIXTON)
-
Rf 245.00 -
Rf 1,600.00
-
Rf 1,700.00
-
Rf 1,700.00
Reviews & Ratings
| Product Name | SC/APC 1*4 PLC Micro PLC Splitter | Brand Name | AIXTON/OEM |
|---|---|---|---|
| Fiber Type | Singlemode G.657A1 | Input/Output Fiber Diameter | 900μm |
| Insertion Loss | ≤10.6dB | Polarization Dependent Loss | ≤0.3dB |
| Return Loss | ≥50dB | Directivity | ≥55dB |
| Highlight | 1x4 fiber splitter,0.9mm Fiber Optic Accessories,1x4 plc splitter | ||
1x4 Optical Fiber Splitter LC SC APC UPC Connector 0.9mm Mini PLC Single Mode Fiber Optic Accessories
Overview
This optical splitter use Planer Light wave Circuit (PLC) technology for split ratio 2, 4,
8,16, 32 and 64. Optical splitter micro tube type refers to the port 0.9 mm slip-on fiber
multi channel direct output with a compact design and easy to use.Application for
FTTXnetwork, LAN/WAN or CATV network.
Features
1. Low Insertion loss
2. Low PDL
3. Compact Design
4. Good channel-to-channel uniformity
5. Wide Operating Wavelength: From 1260nm to 1650nm
6. Wide Operating Temperature: From -40℃to 85℃
Applications:
1. FTTX Systems
2. LAN, WAN and Metro Networks
3. Analog/Digital Passive Optical Networks
4. CATV Networks
5. Other applications in fiber optic systems
Characteristics | Unit | Value/Performance | |||||||||||
Operating Wavelength | nm | 1260 - 1650, others on request | |||||||||||
Port Configuration | - | 1x2 | 1x4 | 1x8 | 2x4 | 2x8 | 1x16 | 2x16 | 1x32 | 2x32 | 1x64 | 2x64 | |
Insertion Loss | dB | <4.0 | <7.3 | <10.5 | <7.6 | <11.0 | <13.7 | <14.4 | <16.9 | <17.5 | <21.0 | <21.0 | |
Uniformity | dB | <0.4 | <0.6 | <0.8 | <1.0 | <1.2 | <1.2 | <1.5 | <1.5 | <1.8 | <2.0 | <2.2 | |
PDL | dB | <0.2 | <0.2 | <0.2 | <0.2 | <0.3 | <0.25 | <0.3 | <0.3 | <0.4 | <0.35 | <0.4 | |
Directivity | dB | >55 | |||||||||||
Operating Temperature | °C | -20 ~ +70 | |||||||||||
Storage Temperature | °C | -40 ~ +85 | |||||||||||
Max. Power | mW | 300 | |||||||||||
Lead Length | m | 1, others on request | |||||||||||
Package Type | - | Box, square tube with bare ribbon, flat tube with 900um fibers | |||||||||||
Dimension | Cassette | mm | 100x80x10 | 120x80x18 | 140x115x18 | ||||||||
Sq. Tube | mm | 40x4x4 | 50x4x4 | 50x7x4 | 60x7x4 | 60x12x4 | N.A. | ||||||
Flat Tube | mm | 50x7x4 | 60x7x4 | 60x12x4 | 80x20x6 | N.A. | |||||||
