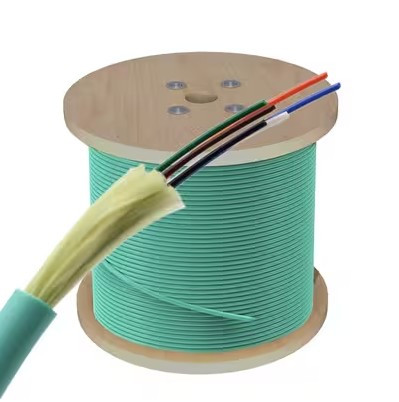

MULTI MODE OM3/300 5.2MM AQUA LSZH 6 CORE FIBER OPTIC CABLE-1000MTR (AIXTON)

MULTI MODE OM3/300 5.2MM AQUA LSZH 6 CORE FIBER OPTIC CABLE-1000MTR ( Aixton )

(0 reviews)

SKU

#12570

Price

Rf 18,500.00 /Pce

Product Description

6 Core Multimode OM3 OM4 Fiber Optic Cable Indoor Optical Fiber Cabling

6 Core Multimode OM3 MO4 Fiber Optic Cable 50/125 GJFJV Indoor Optical Fiber Cabling 62.5/125

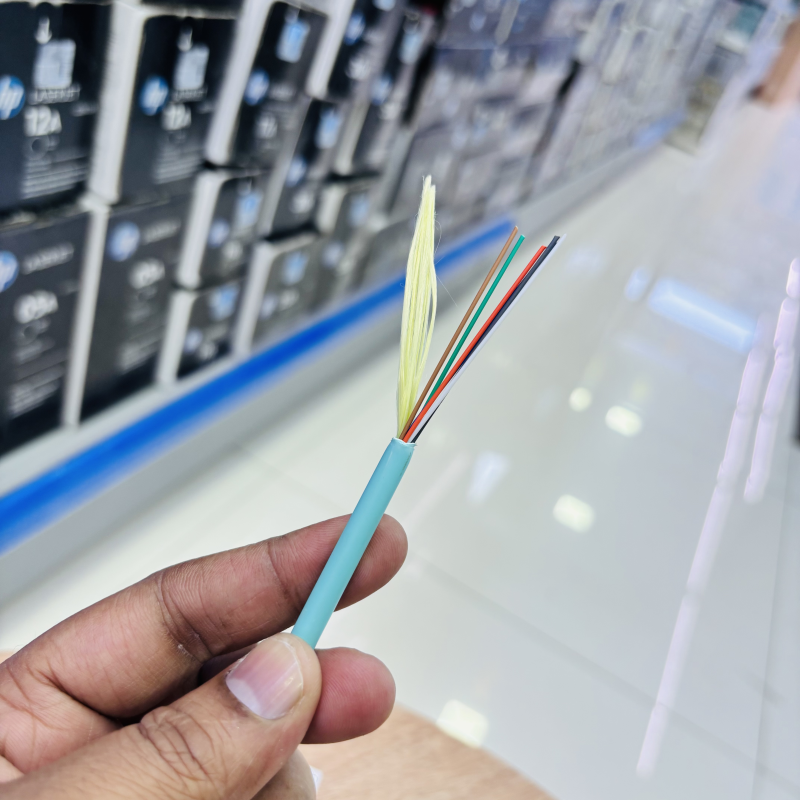

GJFJV indoor fiber optic cable is made by evenly applying strands of Aramid yarns as the strength member over ф900μm or ф600μm tight buffer fibers and then is completed with PVC (LSZH) jacket. High strength aramid yarn strength member ensures tension-resistance and long term stable transmission for optical fibers.

Applications
- Adapted to indoor distribution.

- Suitable for external applications in ducts and aerial applications.

- Long distance and local area network communication.

Features

Fiber Count 1-12
Tight jacket fiber
Aramid yarns reinforce member
LSZH sheath
Single Mode 9/125 or Multi-mode optical fiber 50/125, 62.5/125
Flame retardant products for indoor high performance requirements in order to achieve this requirement, a good jacket with flame retardant material

Fiber Parameters

No.	Items		Unit	Specification
No.	Items		Unit	OM3
1	Mode Field Diameter	850nm	um	50±0.5
1	Mode Field Diameter	1300nm	um	50±0.5
2	Cladding Diameter		um	124.8±0.7
3	Cladding Non-Circularity		%	≤0.7
4	Core-Cladding Concentricity Error		um	≤0.5
5	Coating Diameter		um	245±5
6	Coating Non-Circularity		%	≤6.0
7	Cladding-Coating Concentricity Error		um	≤12.0
8	Cable Cutoff Wavelength		nm	λcc≤1260
9	Attenuation(max.)	850nm	dB/km	3.5
9	Attenuation(max.)	1300nm	dB/km	1.5

Cable Parameters

Items		Parameters
Fiber count		6
Tight-buffered Fiber	Diameter	850μm±50μm
	Material	LSZH
	Color	Blue Orange Green Brown Gray White Red Black Yellow Purple Pink Aqua
Strength Member		Kevlar
Jacket	Diameter	6.2mm±0.2mm
	Material	LSZH/PVC
	Color	Light Green

Fiber colour

Blue

Orange

Green

Brown

Grey

White

Red

Black

Yellow

Purple

Pink

Aqua

Mechanical and Environmental Characteristics

Items	Unite	Parameters
Tension(Long Term)	N	200
Tension (Short Term)	N	660
Crush (Long Term)	N/10cm	200
Crush (Short Term)	N/10cm	1000
Min. Bend Radius (Dynamic)	mm	20D
Min. Bend Radius (Static)	mm	10D
Operating Temperature	℃	-20~+60
Storage Temperature	℃	-20~+60
