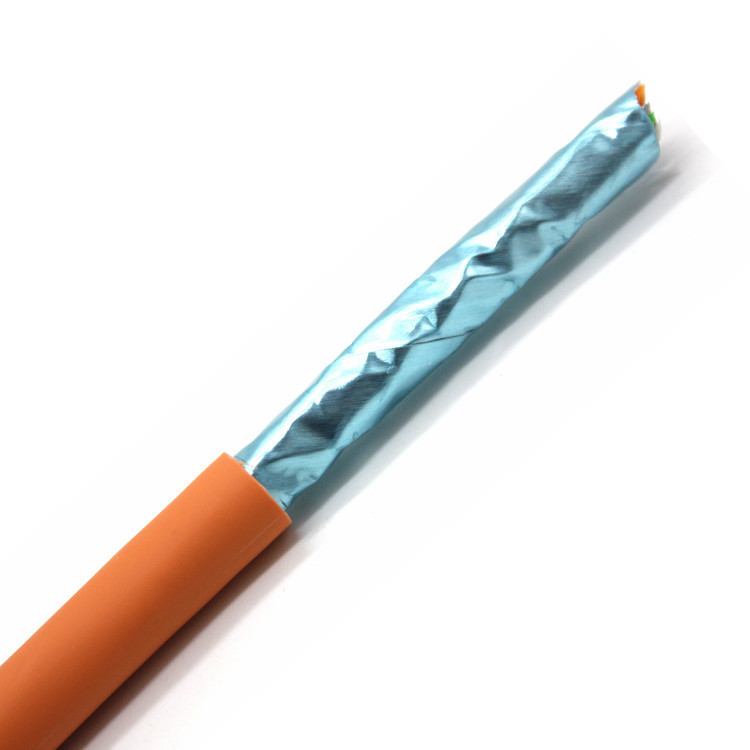

Orange Color LSZH Jacket Cat 6 Shielded Ethernet Cable 23AWG Network Cable

CAT6 cables reduce crosstalk and system noise. The superior insulation around the 23 AWG copper wires attribute to the increased performance. They can transmit data at 1000 Mbps (~1 Gigabit per second) with a frequency of 250 MHz and suitable for 10BASE-T, 100BASE-TX Fast Ethernet and 1000BASE-T / 1000BASE-TX (Gigabit Ethernet). The shield reduces electrical noise from affecting the signals, and to reduce electromagnetic radiation that may interfere with other devices

Features

• Pure Bare Copper Transmit Faster while Lasting the Distance than CCA
• Tangle and Twist-free Packaging
• Marked Every 1m (3.28ft) on Cable Makes Measuring Easy
• Support PoE, PoE+ (IEEE 802.3af/at)
• CE, Reach, RoHS Certified and UL Listed
• Shielding Helps Eliminate Cross-talk and Prevents Electromagnetic Interference (EMI)
• Tested with a Fluke DSX-8000 Versiv CableAnalyzer

SPECIFICATIONS

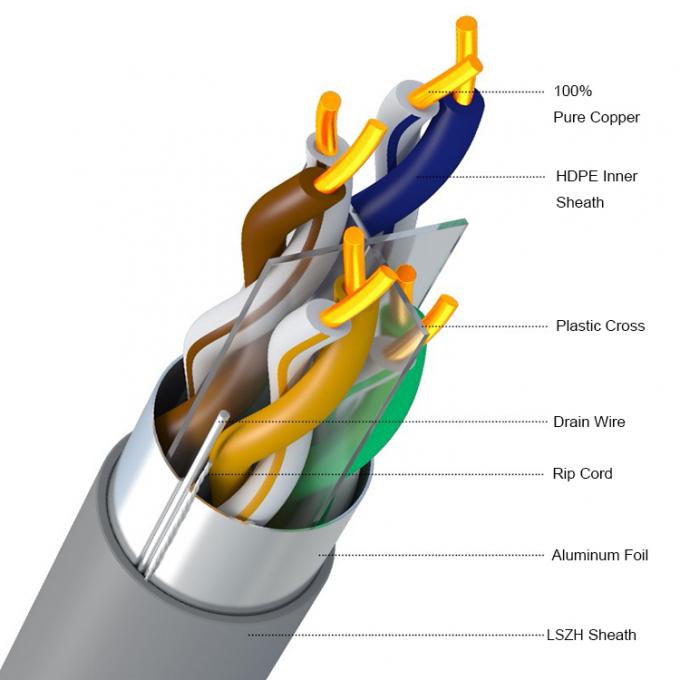

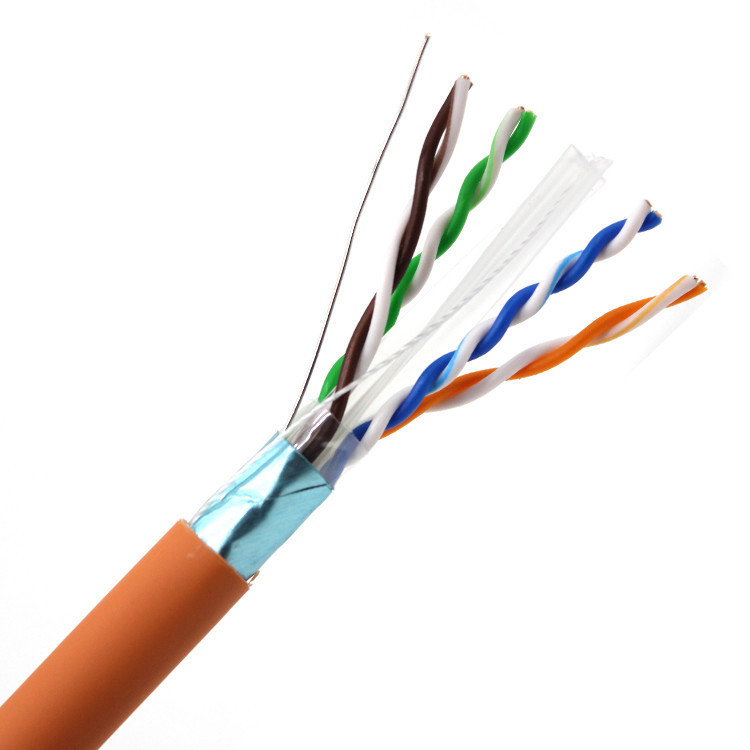

•  4 Pairs Shielded Twisted Pair (FTP) Cable

•  Conductor Metal: Solid Bare Copper

•  Shield: Aluminum Polyester Foil

•  Color Code: Orange

•  Conductor Diameter: 0.560mm Nominal, 23 AWG

•  Insulation Diameter: 1.14 Nominal, Insulation Material: HD-PE

•  Drain Wire: 26 AWG

•  Jacket Material: LSZH

•  Cable Diameter : 6.2±0.2mm Nominal

•  PE Central Cross separator

Electrical Properties
1. Max linear electrical resistance:95 ohm/Km
2. Mutual capacity (nom):45 pF/m
3. Characteristic impedance:100 +/- 15ohm
4. Nominal Velocity Propagation:66%
