ORICO PWM2-G2 M.2 NVMe SSD Enclosure – USB 3.2 Gen 2

Product Overview

The ORICO PWM2-G2 M.2 NVMe SSD Enclosure allows you to use a compatible M.2 NVMe solid-state drive as external storage. Featuring a USB 3.2 Gen 2 Type-C interface with transfer rates up to 10Gbps, it provides a convenient solution for file transfers, backups, and portable data storage.

Its aluminum alloy and ABS construction, compact design, and tool-free installation make it suitable for home, office, and professional use.

Key Features

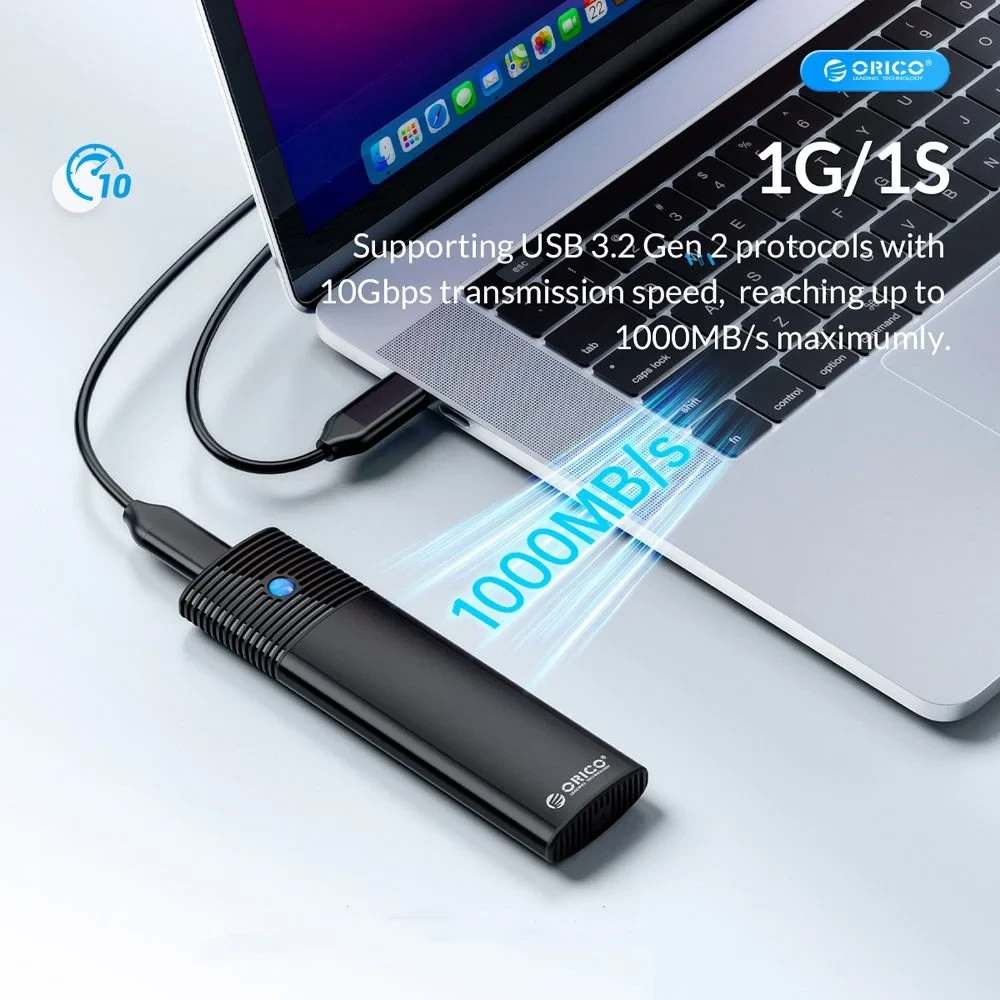

• USB 3.2 Gen 2 Type-C – Supports data transfer rates up to 10Gbps.

• M.2 NVMe Support – Designed for compatible NVMe SSDs.

• Four SSD Sizes Supported – Compatible with M.2 2230, 2242, 2260, and 2280 drives.

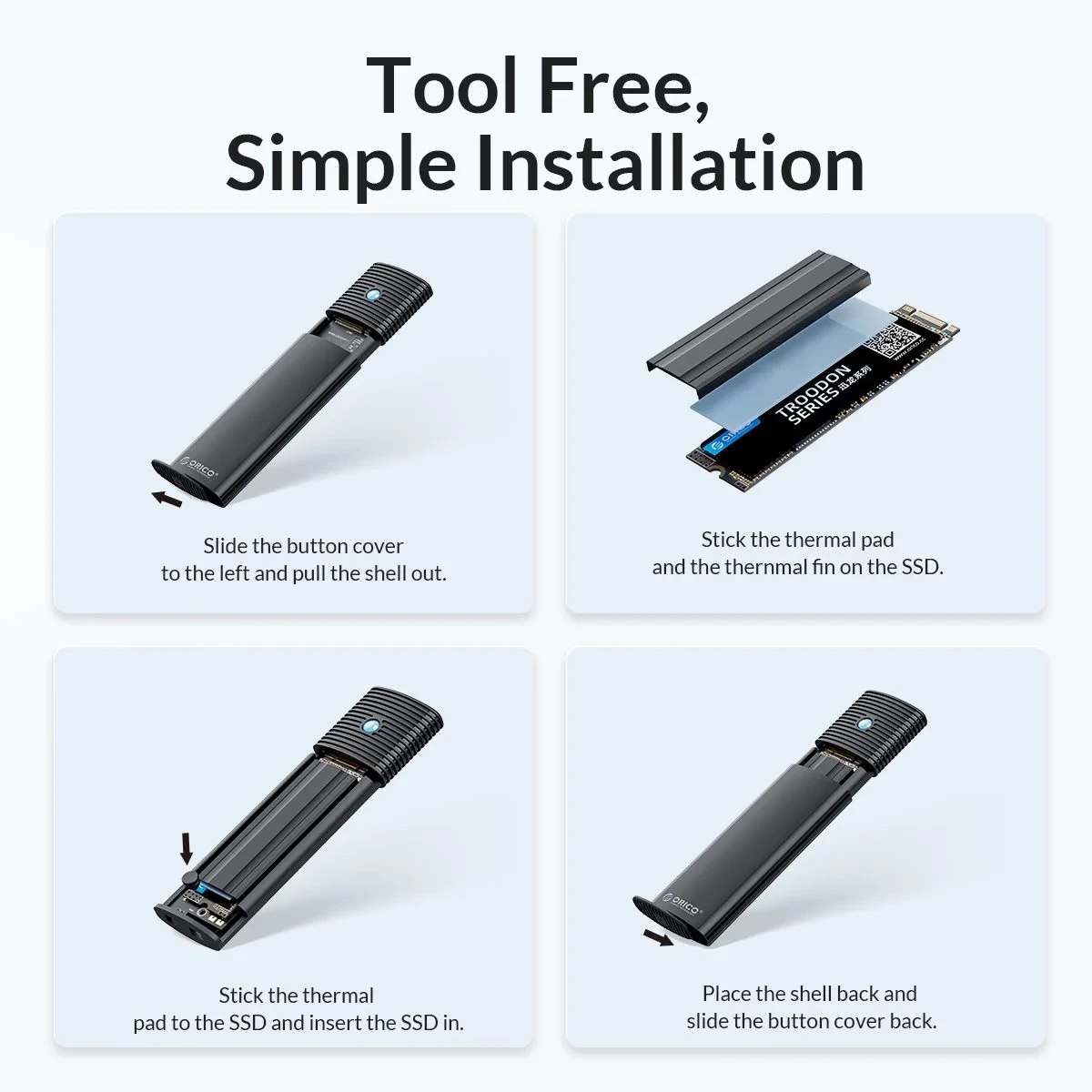

• Tool-Free Installation – Makes installing a compatible SSD convenient.

• Aluminum Alloy + ABS Housing – Combines metal and plastic construction.

• Portable Design – Suitable for carrying external storage between locations.

• LED Indicator – Helps indicate the enclosure's operating status.

• Wide Operating System Support – Compatible with Windows, macOS, and Linux.

• Automatic Sleep Function – Supports entering sleep mode after 10 minutes of inactivity.




Benefits and Recommended Uses

• Turning a compatible M.2 NVMe SSD into portable external storage.

• Transferring large files between computers.

• Backing up important documents, photos, and videos.

• Accessing stored files on compatible laptops and desktop PCs.

• Reusing a compatible NVMe SSD as an external drive.




Technical Specifications

Specification	Details
Brand	ORICO
Model	PWM2-G2
Product Type	M.2 NVMe SSD Enclosure
External Interface	USB Type-C
USB Standard	USB 3.2 Gen 2
Maximum Transfer Rate	Up to 10Gbps
Supported SSD Protocol	NVMe
Supported SSD Sizes	2230 / 2242 / 2260 / 2280
Maximum Capacity	Up to 8TB, subject to version
Material	Aluminum Alloy + ABS
Installation	Tool-free
Cable	USB-C to USB-C, 0.3m

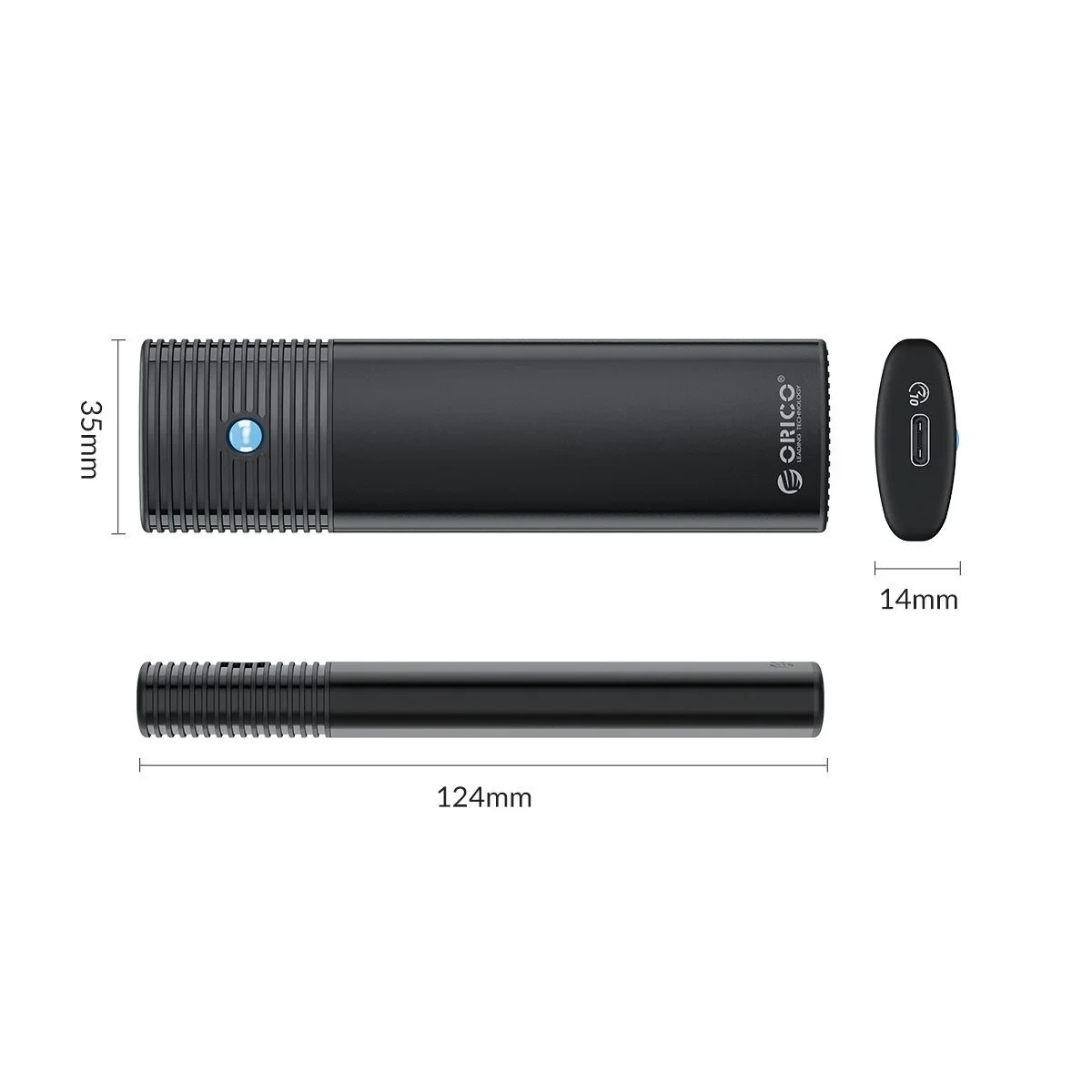

Dimensions	124 × 35 × 14 mm
Supported Operating Systems	Windows / macOS / Linux

Conclusion

The ORICO PWM2-G2 is a portable enclosure for compatible M.2 NVMe SSDs, offering USB Type-C connectivity, transfer rates up to 10Gbps, and convenient installation. It is suitable for external storage, backups, and transferring files between compatible devices.
