Product Description

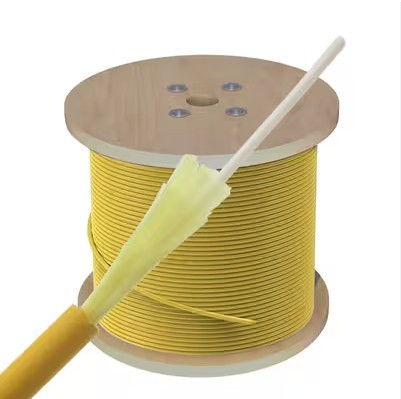

3.0mm Single Mode Simplex Indoor G652D PVC Fiber Cable for Fiber Patchcord 3mm

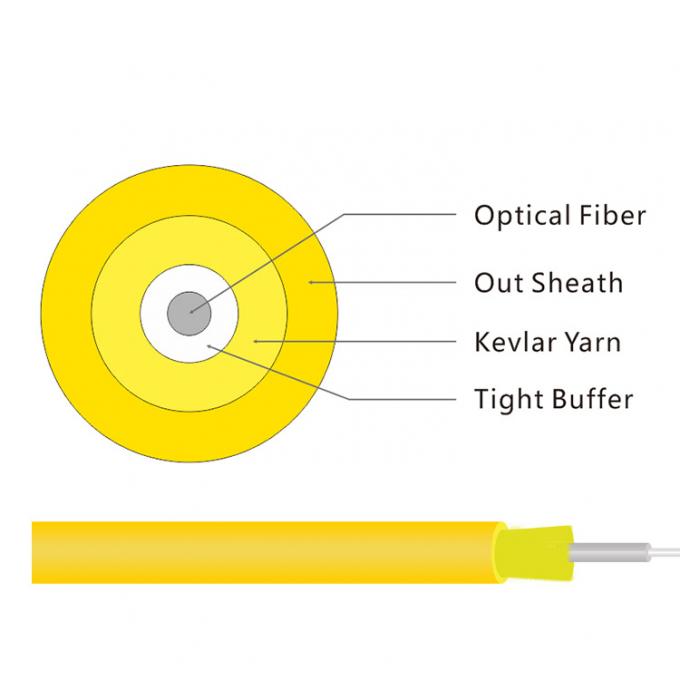

GJFJV indoor fiber optic cable is made by evenly applying strands of Aramid yarns or High

strength glass yarns as the strength member over 900μm or 600μm tight buffer fibers and

then is completed with PVC(LSZH)jacket.

Features:

• Tight buffer fiber ease of stripping;
• Tight buffer fiber have excellent flame-retardant performance;
• Aramid yarn as strength member make cable have excellent tensile strengh;
• The jacket anti-corrosion, anti-water, anti-ultraviolet radiation, flame-retardant
• and harmless to environment etc;

Applications:

• Optical fiber jumper or pigtail;
• Indoor riser level and plenum level cable distribution;
• Interconnect between instruments, communication equipments;





Fiber Parameters

CORE SIZE/ FIBER TYPE	ISO/ IEC	MAXIMUM ATTENUATION (DB/KM)			OVERFILL LAUNCH MIN. BANDWIDTH (MHZ•KM)		EMBc (MHZ•KM)	GIGABIT ETHERNET MIN. LINK DISTANCE (METERS)		10 GIGABIT ETHERNET MIN. LINK DISTANCE (METERS)
		850 NM	1300 NM	1550 NM	850 NM	1300 NM		850 NM	1300 NM	850 NM	1300 NM
62.5/125	OM1	3.5	1.2	N/A	200	600	N/A	300	550	32	—
50 /125	OM2	3.5	1.5	N/A	500	500	N/A	600	600	82	—
50 /125	OM2	3.0	1.2	N/A	700	500	950	800	550	150	—
50 /125	OM3	3.0	1.2	N/A	1500	500	2000	1000	550	300	—
50 /125	OM4	3.0	1.2	N/A	3500	550	4700	1040	550	550	—
G.657.A1 Single-mode	OS2	N/A	0.5	0.5	N/A	N/A	N/A	N/A	5000	N/A	10,000
SM	OS2	N/A	0.5	0.5	N/A	N/A	N/A	N/A	5,000	N/A	10,000

Cable Parameters

Items		Parameters
Fiber count		1
Tight-buffered Fiber	Diameter	850μm±50μm
	Material	LSZH
Strength Member		Kevlar/Aramid yarn
Jacket	Diameter	3.0x3.0mm
	Material	LSZH/PVC
	Color	Light Green
